| 加工定制：是 | 品牌：Honeywell/霍尼韦尔 | 型号：XL50A-MMI-EP Excel50 |
| 额定电压(V)：24 |
XL50A-CH XL50CH XL50A-UMMIPCCBLON 中文DDC控制器
产品型号：XL50A-CH XL50CH XL50A-UMMIPCCBLON
主要参数：
输入输出配置:8个模拟输入AI(通用), 4个模拟输出AO(通用),4个数字输入DI, 6个数字输出DO。可扩展至最多40点
输入输出标准:AI: 0-10VDC/0-20mA/NTC20K, AO: 0-10VDC,DI: 24VDC,0-0.4Hz, DO: 双向可控硅0.8A,24VAC
液晶显示:可选液晶显示：4行，每行16个字符
功能键:8个基本功能键，4个快速访问的特殊功能键
后备电池:镁电容保持72小时备用电池记忆
防护标准:IP30，IP54，UL94-0
存储器:Flash memory, 随时读写,***期保存数据
编程工具:Care
总线通讯:内置C-Bus总线通讯，RS232串口，LON及M-Bus通讯
电源:24VAC,3A
环境温湿度:0-45℃, 5-90%RH
尺寸:150X196X81mm(高X宽X深),开孔尺寸,186X138mm
重量:400克
相关型号如下：
XL50CH XL50 stand alone with Simple Chinese, XL50-CY+XD50B-F+XS50
XL50TW XL50 stand alone with traditional Chinese, XL50-CY+XD50B-F+XS50
XL50A-CH XL50 stand alone with Simple Chinese, XL50-CY+XD50B-F+XS50
XL50A-TW XL50 stand alone with traditional Chinese, XL50-CY+XD50B-F+XS50
XL50A DDC 22I/O W/O TERM
XL50A-MMI DDC 22I/O INCL. MMI W/O TERM
XS50 XL50 TERMINAL SET
XD50-E XL50 EPROM module
XD50B-FC Excel 50 Communication Card for C-Bus
XD50B-FL Excel 50 Communication Card for C-Bus
XD50B-FCL LON/C-BUS APPL.MOD.FREE PROGR.
XL50-ACC3 MOUNT ACC. FRONT DOOR
XL50A-UPC XL50 package with terminals XS50 and application module XD50-FC, without MMI
XL50A-UMMI-PC XL50 package with terminals XS50 and application module XD50-FC, with MMI (XL50-MMI-FP)

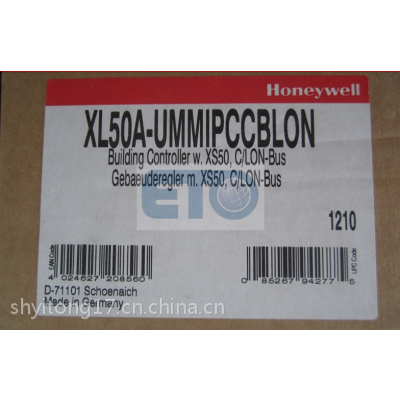

XL50A-UMMIPCCBLON XL50 FREI PROGR.+XS50+XD50B-FCL
XL50A-UMMIPCLON XL50-MMI FREEPROG.+XS50+XD50FL
XL50A-UPCCBLON XL50 FREI PROGR.+XS50+XD50B-FCL
XL50A-UPCLON XL50 FREE PRORG.+XS50+XD50-FL
MCD3 AO CONVERTER 1*3POS 1*ON/OFF
MCE3 Relay Module, Two Spdt Outputs, One Spst Output
